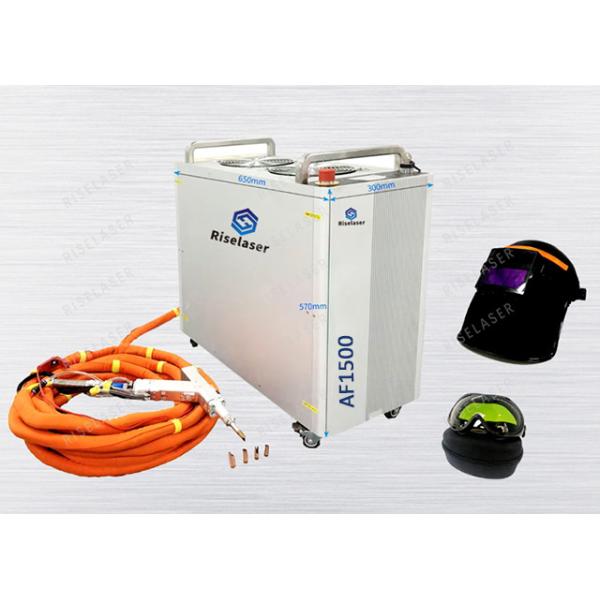

Air-cooled GW laser source mini laser welding machine 60KG only replace TIG MIG welding
Maintenance-free all-solid-state fiber lasers from Riselaser for
high reliability in industrial environments
Excellent laser stability ensures stable power over the entire
output range of 150-1500 W
Select the storage mode to achieve up to 2500 W peak power for
greater welding power.
Machin size

Compact Handheld Welding Gun

Ergonomically designed, lightweight, the most comfortable and
easy-to-use laser torch with built-in swing function
Dual-safety illuminated buttons and welded-component contact
sensors increase operator safety
Various types of replaceable nozzles, suitable for different
welding requirements
10m pipeline bag (optional 15m)
Compatible with all types of wire feeders

Built-in swing welding for increased productivity
Simple operation, real-time control of welding frequency and width,
swing width up to 5mm
Forms beautiful welds with high tolerance to workpiece assembly
gaps
Machine specification
| Electrical and Environmental Requirements | |
| Input voltage | 220VAC/50Hz/60Hz, <18A |
| Protective gas | Argon, Nitrogen, Ar+CO2 mix |
| Storage ambient temperature | -20-60℃ |
| Working ambient temperature range | 0~50℃ |
| Working environment humidity range | ≤95% |
| Mechanical Specifications | |
| size | 650x300x570 [mm] (L*W*H) |
| weight | 62kg |
| Process application | |
| Portable Laser Welding Handheld Laser Welding | |
| Intelligent Laser WeldingPrecision Laser Welding | |
| Material range | ||
| Material Type Thickness | Thickness of single-sided welding | Thickness of Double-sided welding |
| Stainless steel | ≤4mm | ≤10mm |
| carbon steel | ≤4mm | ≤10mm |
| aluminum | ≤4mm | ≤10mm |
| copper | ≤1mm | ≤2mm |
